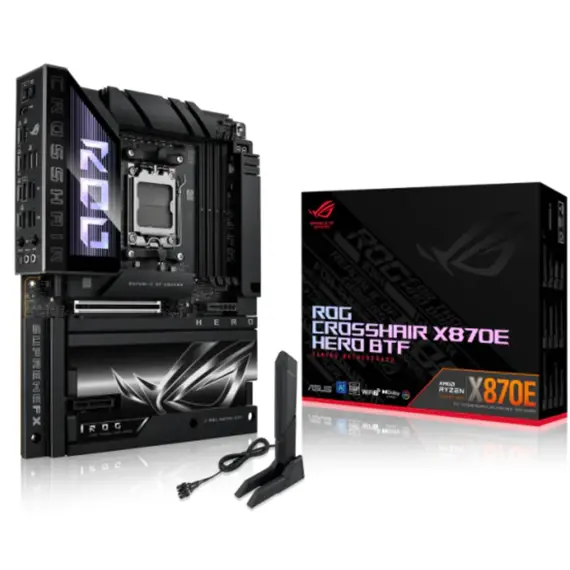

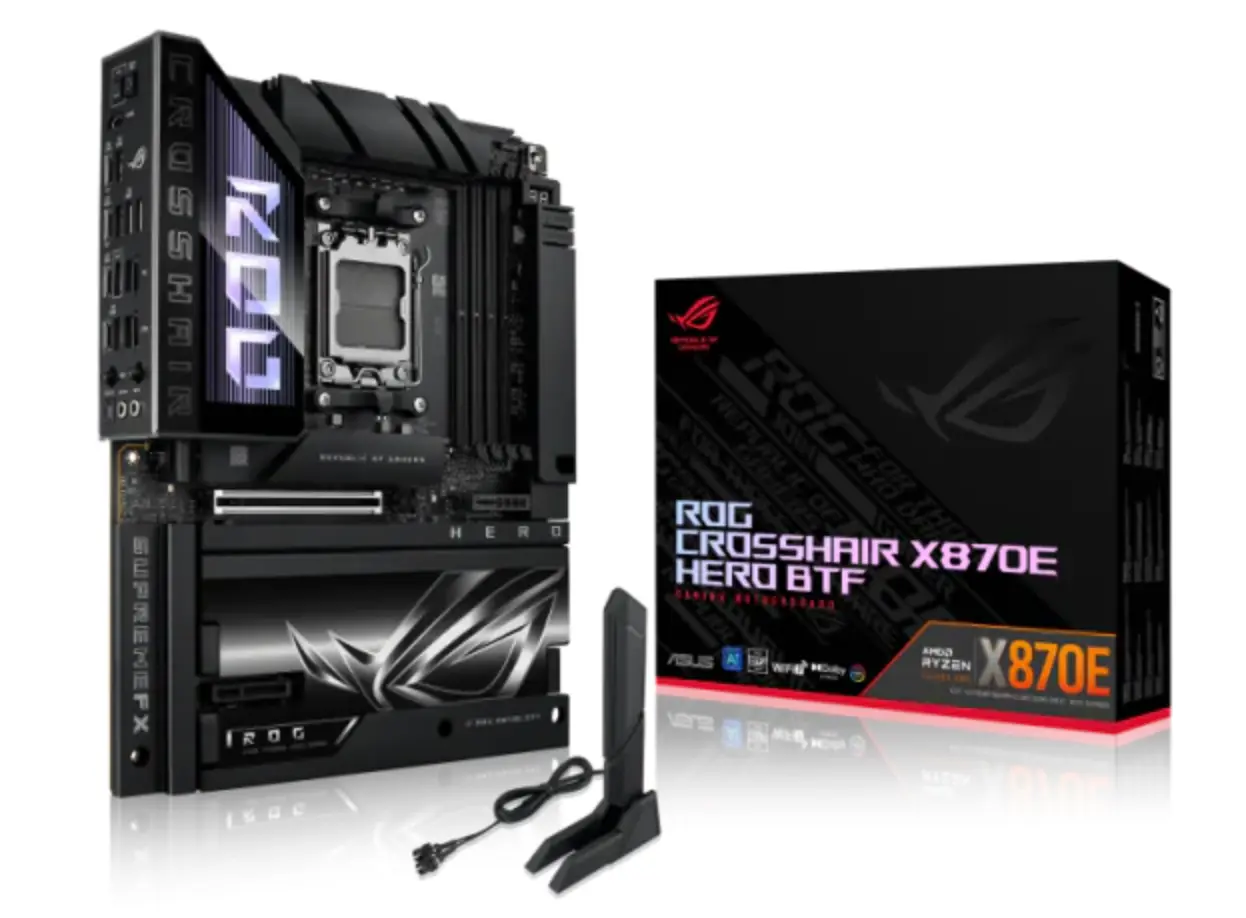

Motherboard ASUS ROG CROSSHAIR X870E HERO BTF sAM5 X870E 4xDDR5 M.2 HDMI Wi-Fi BT ATX

ASUS ROG Crosshair X870E Hero BTF is a high-end motherboard designed for enthusiasts, gamers, and professionals seeking maximum performance and clean design. The device is tailored for AM5 socket processors and equipped with the X870E chipset, ensuring future technology support. The innovative BTF (Back-to-the-Future) design allows most cables to be hidden on the back of the motherboard, creating a visually perfect and organized system. Four DDR5 slots guarantee the fastest memory performance, while the abundance of M.2 slots and PCIe 5.0 support ensures instant data transfer. Integrated Wi-Fi 7 and Bluetooth provide stable and fast wireless connectivity. Powerful cooling radiators and premium quality components guarantee that your system operates stably even under peak loads. Purchase the flagship ASUS ROG and build your dream computer without any compromises.

Product Description :

• Socket: AMD Socket AM5.
• Compatible Processors: AMD Ryzen 7000, 8000, and 9000 series.
• Chipset: AMD X870E.
• Form Factor: ATX.

Memory

• Type: DDR5-SDRAM (enhanced for performance with NitroPath DRAM technology)
• Slots: 4 x DIMM (Dual-channel)
• Maximum Capacity: 256 GB
• Maximum Frequency: Up to 8600 MHz
• Support: ECC and Non-ECC, Unbuffered memory

Storage & RAID

• Total Drives Supported: 9 units
• 5 x M.2 slots (including PCIe 5.0 support)
• 4 x SATA III (6Gb/s) ports
• RAID Support: Levels 0, 1, 5, 10

Network and Connectivity

• Wi-Fi: Wi-Fi 7 (802.11be) support
• Bluetooth: Version 5.4
• Ethernet (LAN): two ports — 2.5 Gigabit and 5 Gigabit Ethernet

Back Panel Ports (I/O)

• USB4: 2 x USB4 Gen 3x2 (Type-C)
• USB 3.2: 2 x Type-C and 6 x Type-A (Gen 2)
• Video Output: 1 x HDMI
• Audio: 7.1 channel sound, S/PDIF output, and microphone input
• Buttons: Clear CMOS (to reset BIOS settings)

Internal Connectors (BTF Design)

• Power: 24-pin ATX, 12V EPS (8-pin), and additional connectors for graphics card
• Cooling: 1 x CPU Fan and 4 x Chassis Fan connectors
• USB: 2 x USB 3.2 Gen 2x2, 2 x USB 3.2 Gen 1 and 2 x USB 2.0 connectors

Additional Features

• Polymo Lighting II: updated visual lighting effects
• AI Tuning: ASUS's exclusive artificial intelligence-optimized system
• Weight: The motherboard weighs 2.62 kg (packaged 4.47 kg)
• Operating System: optimized for Windows 11
