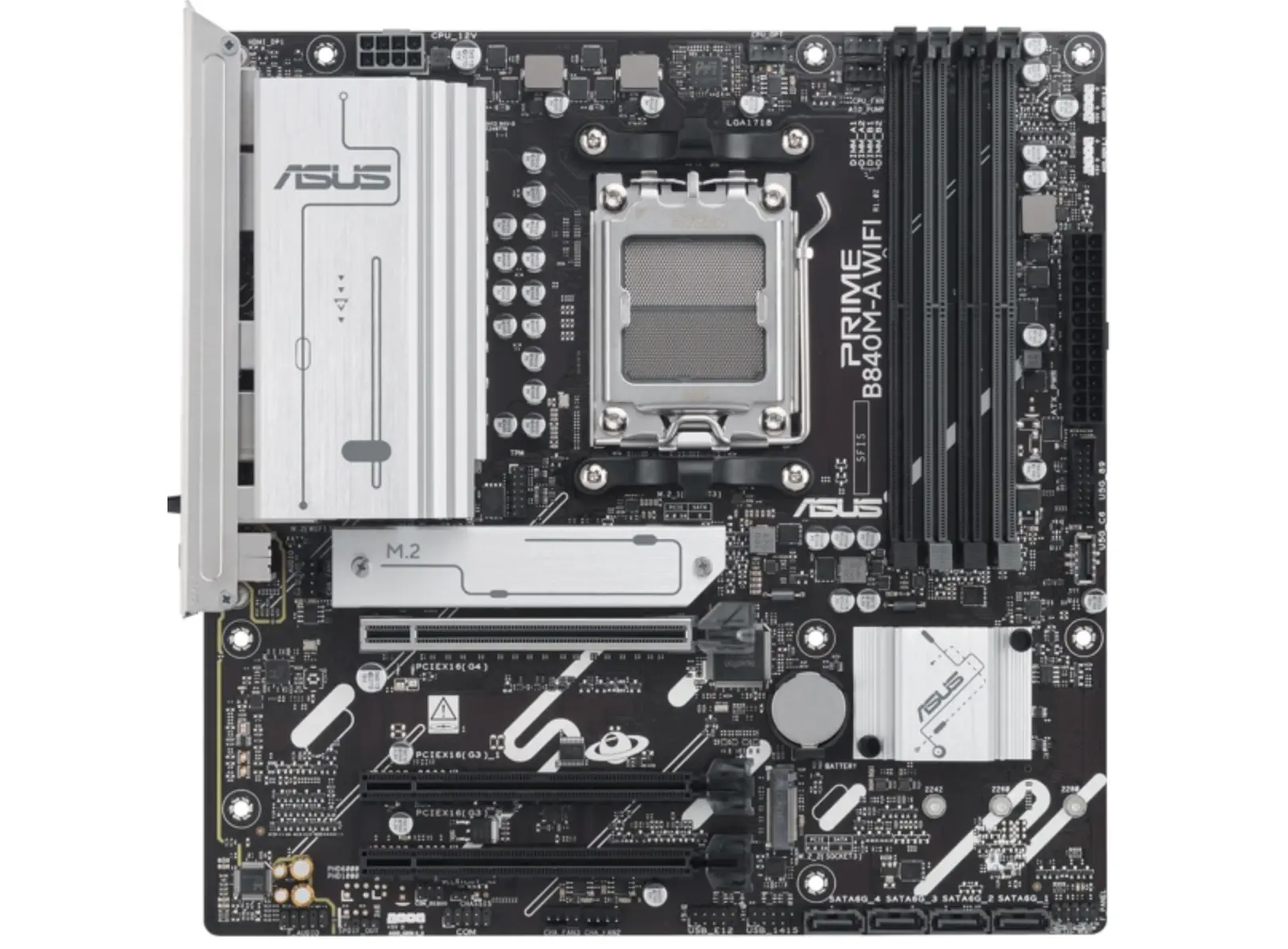

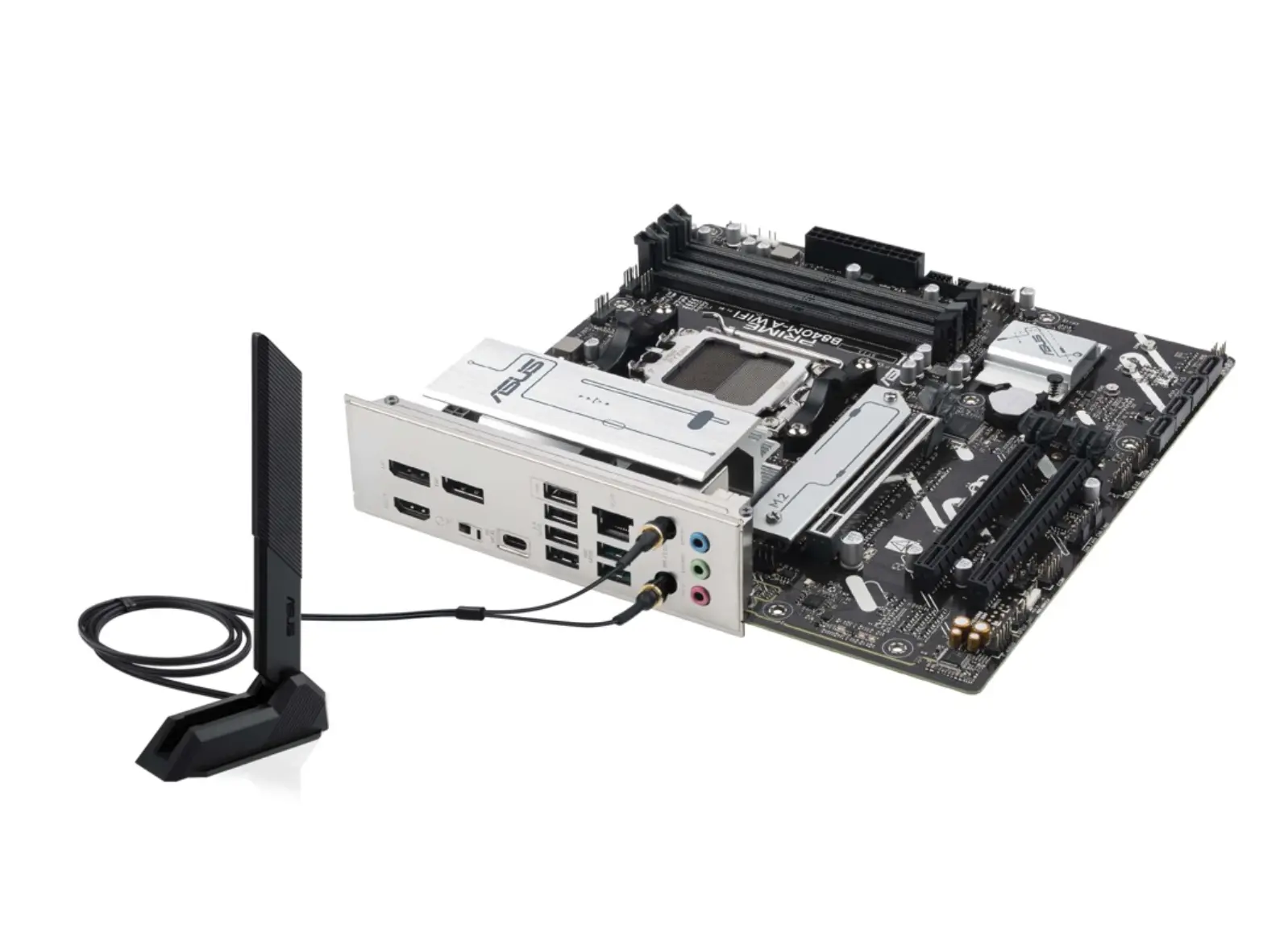

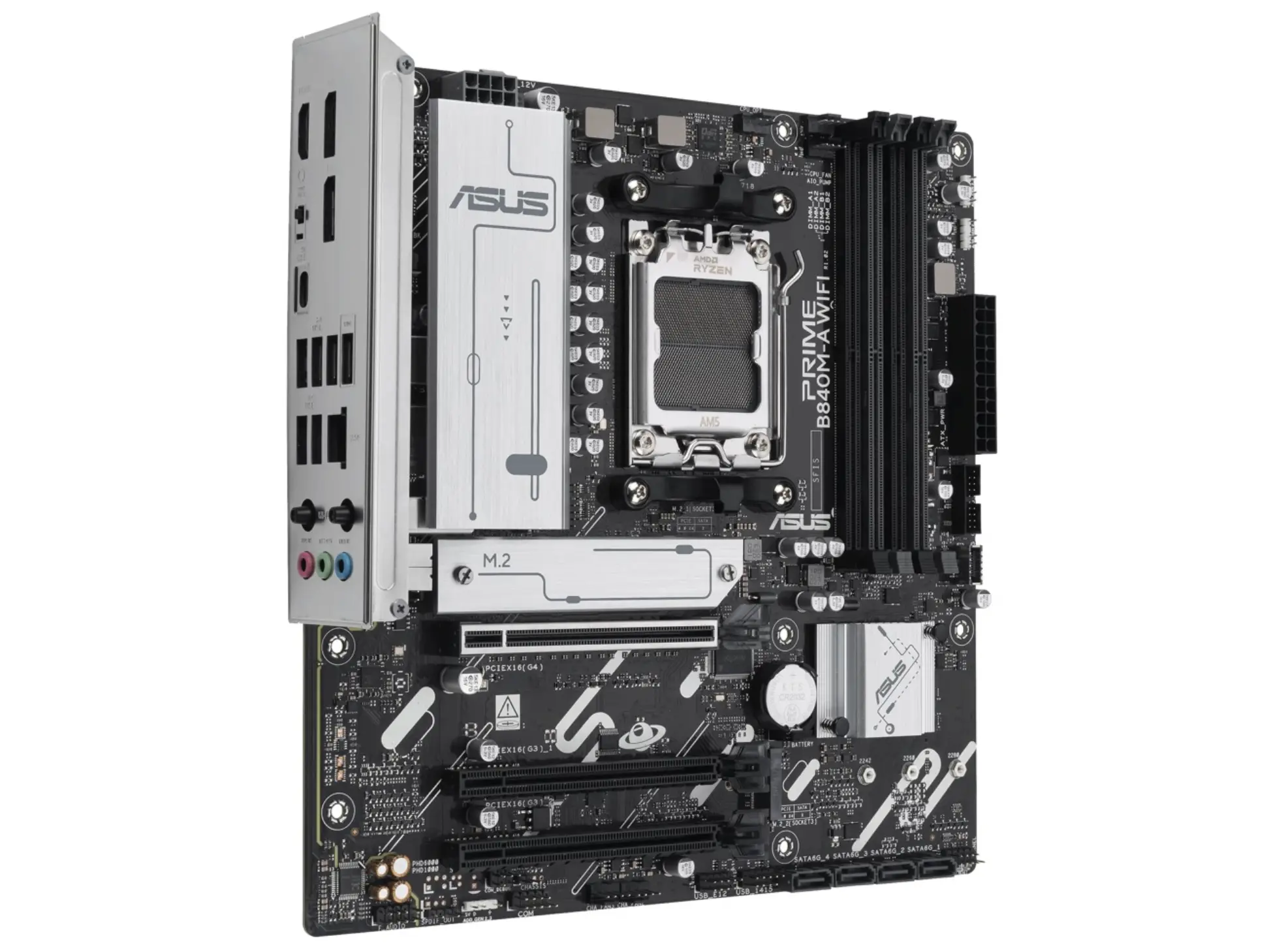

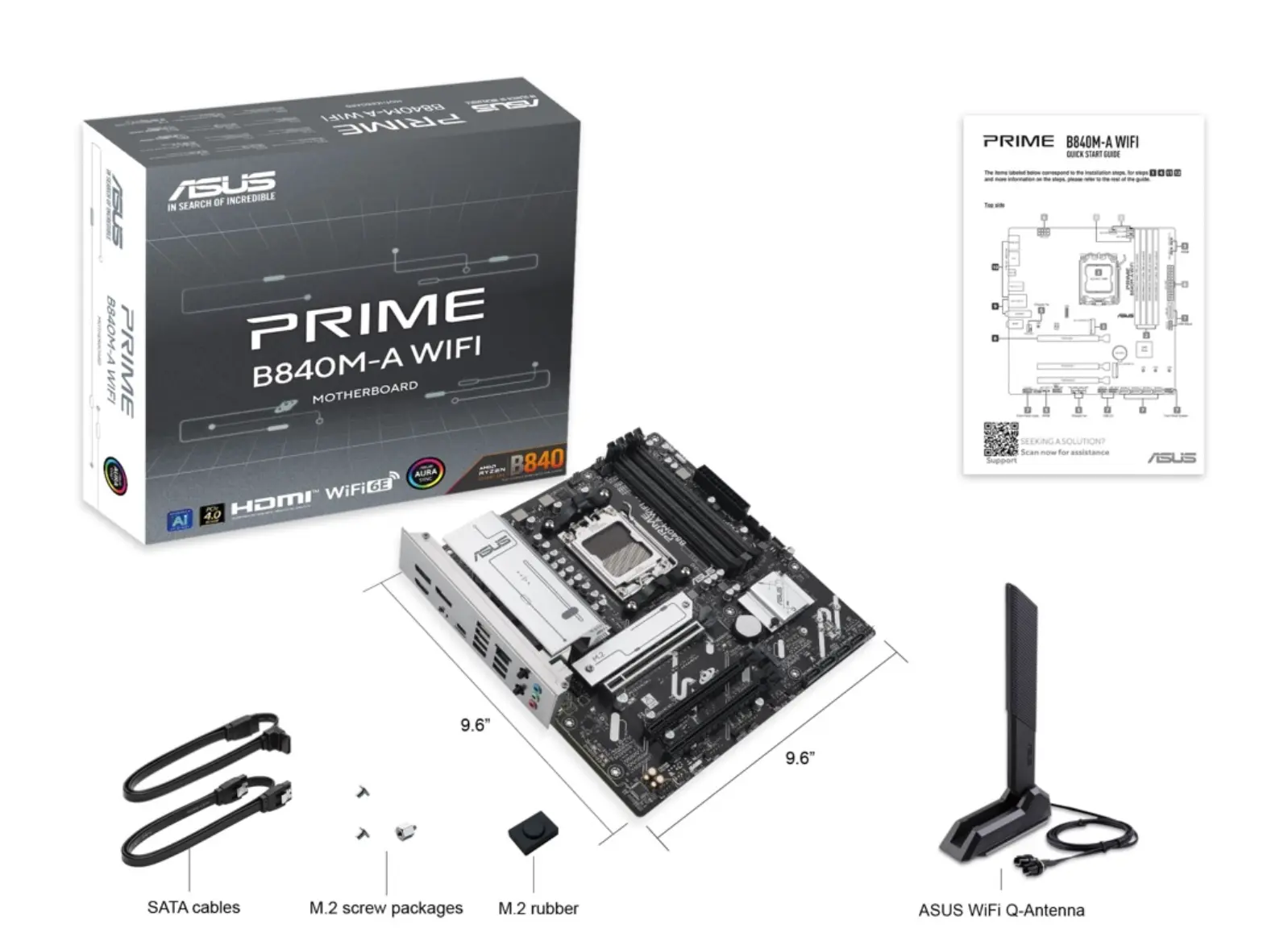

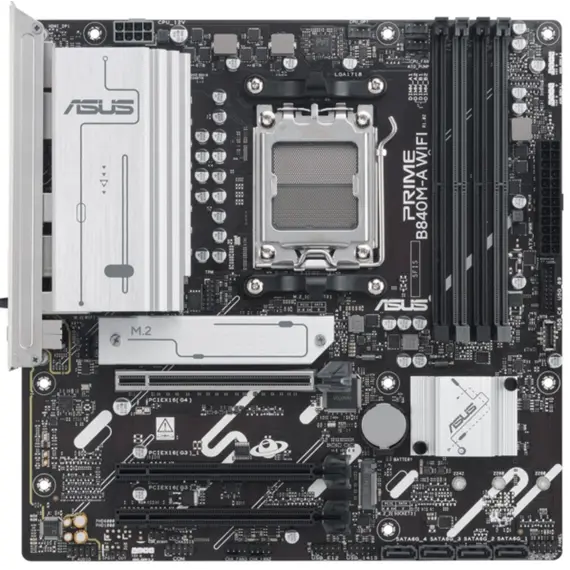

Motherboard ASUS PRIME B840M-A WIFI sAM5 B840 4xDDR5 M.2 HDMI DP Wi-Fi BT mATX

The modern and reliable motherboard is designed for stable, high-performance, and professional operation of your computer system. The device is equipped with full support for the latest processors, ensuring instant system response and high throughput for tasks of any complexity. Four new-generation RAM slots guarantee that complex applications, large-scale data processing, and multimedia files will work seamlessly. Built-in high-speed wireless connectivity modules and modern ports allow you to transfer information instantly and enjoy uninterrupted internet streaming. Advanced cooling radiators and sturdy construction reliably protect components from overheating, even during prolonged loads. Discover ultimate performance, upgrade your work or gaming space, and achieve complete technological freedom with this reliable model.

Product description :

• Brand: Asus
• Model: 90MB1J20-M0EAY0
• Product type: motherboard
• Form factor: micro ATX

Processor

• For AMD processors
• Socket type: AM5
• Chipset
• Northbridge (chipset): AMD B840
• BIOS: UEFI
• UEFI BIOS: yes
• RAM
• Socket type: DDR5
• DDR5: 4 slots
• Maximum clock frequency: 7600 MHz (OC)
• Maximum memory capacity: 192 GB

Video parameters

• Graphics interface
• PCI-E x16 4.0
• PCI-E x16 3.0
• HDMI output
• DisplayPort

Audio parameters

• Audio chip: Realtek
• Sound: 7.1
• S/P-DIF: yes
• Disk connections
• Connection interface
• SATA 3
• M.2
• Software RAID support: yes
• SATA3 (6 Gbit/s): 4 ports

Network interfaces

• LAN (RJ-45): 2.5 Gbps
• Number of LAN ports: 1
• LAN controller model: Realtek
• Wi-Fi: yes 2x2 6E (802.11ax)
• Bluetooth: yes 5.3

Connection connectors

• USB 2.0: 6 pieces (4 rear type-A, 2 front connectors with support for 4 additional USB 2.0 ports)
• USB: 14 pieces (7 rear, 7 front)
• USB 3.2 Gen 1: 3 /(1 rear type-C, 1 front type-C connector, 1 front connector with support for 2 additional USB ports)
• USB 3.2 Gen 2 2 /(rear type-A)
• M.2 connector: 3
• Dimensions (height x width): 244 x 244 mm
